# Introduction

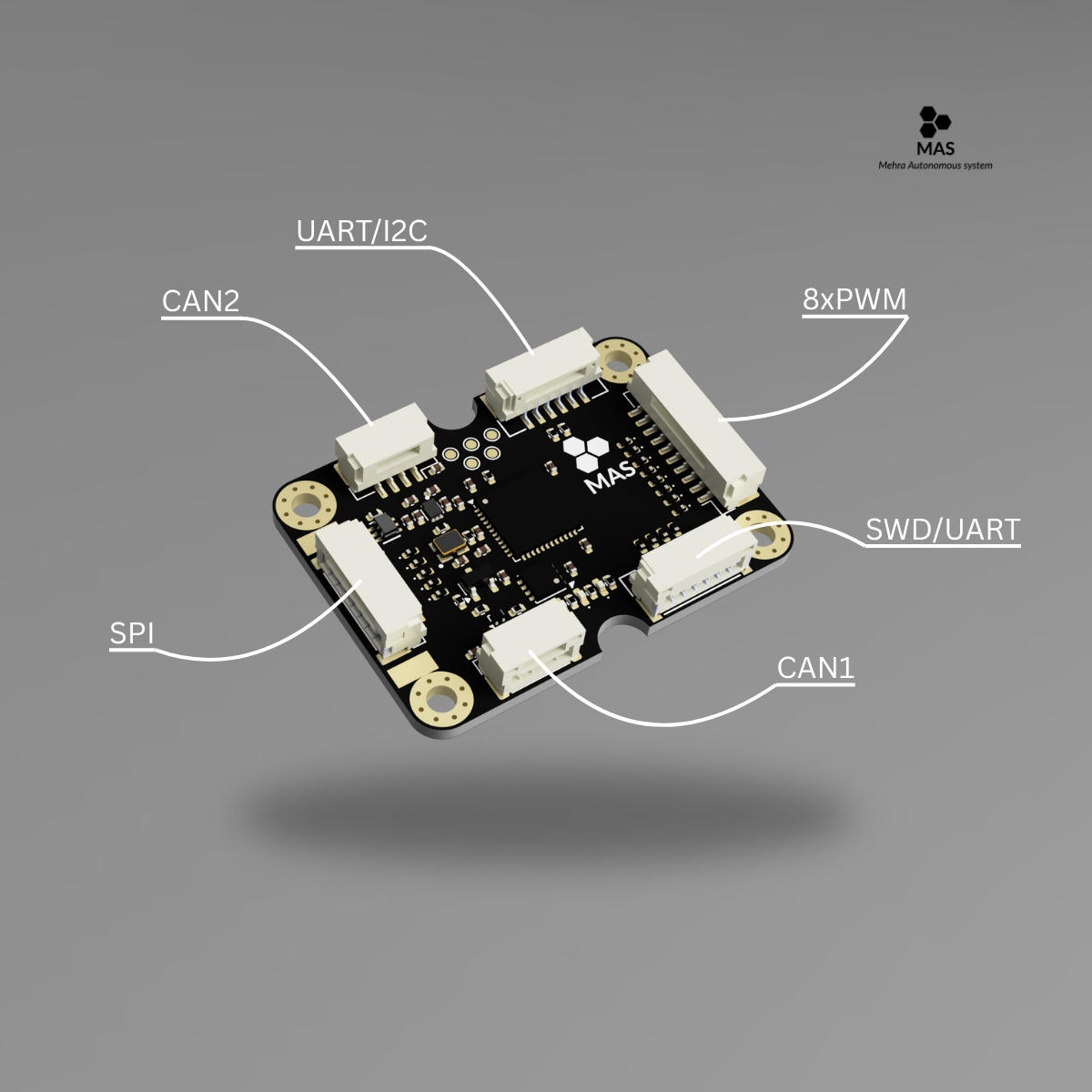

AeroBridge is a universal CAN-based module that converts legacy UAV and robotic interfaces—like PWM, UART, I²C, SPI, and GPIO—into DroneCAN-compatible nodes. It enables plug-and-play integration of servos, ESCs, GPS modules, telemetry radios, sensors, and other peripherals into modern DroneCAN-based autopilot systems.

Built on ArduPilot ap\_periph and PX4 DroneCAN open-source firmware, AeroBridge is designed and manufactured in India to meet the growing demands of scalable, noise-resilient drone architectures.

<figure><img src="/files/9LZ8YrSmQnxlXtbODGCD" alt=""><figcaption></figcaption></figure>

Firmware Support:

* ArduPilot [ap\_periph](https://ardupilot.org/dev/docs/ap-peripheral-landing-page.html)&#x20;
* PX4 [DroneCAN](https://docs.px4.io/main/en/dronecan/) (limited peripheral support)

Applications:

* DroneCAN-enabled GPS
* CAN-based servo/ESC control
* Sensor integration (IMU, compass, barometer)
* Telemetry over CAN
* Custom CAN nodes for robotics
