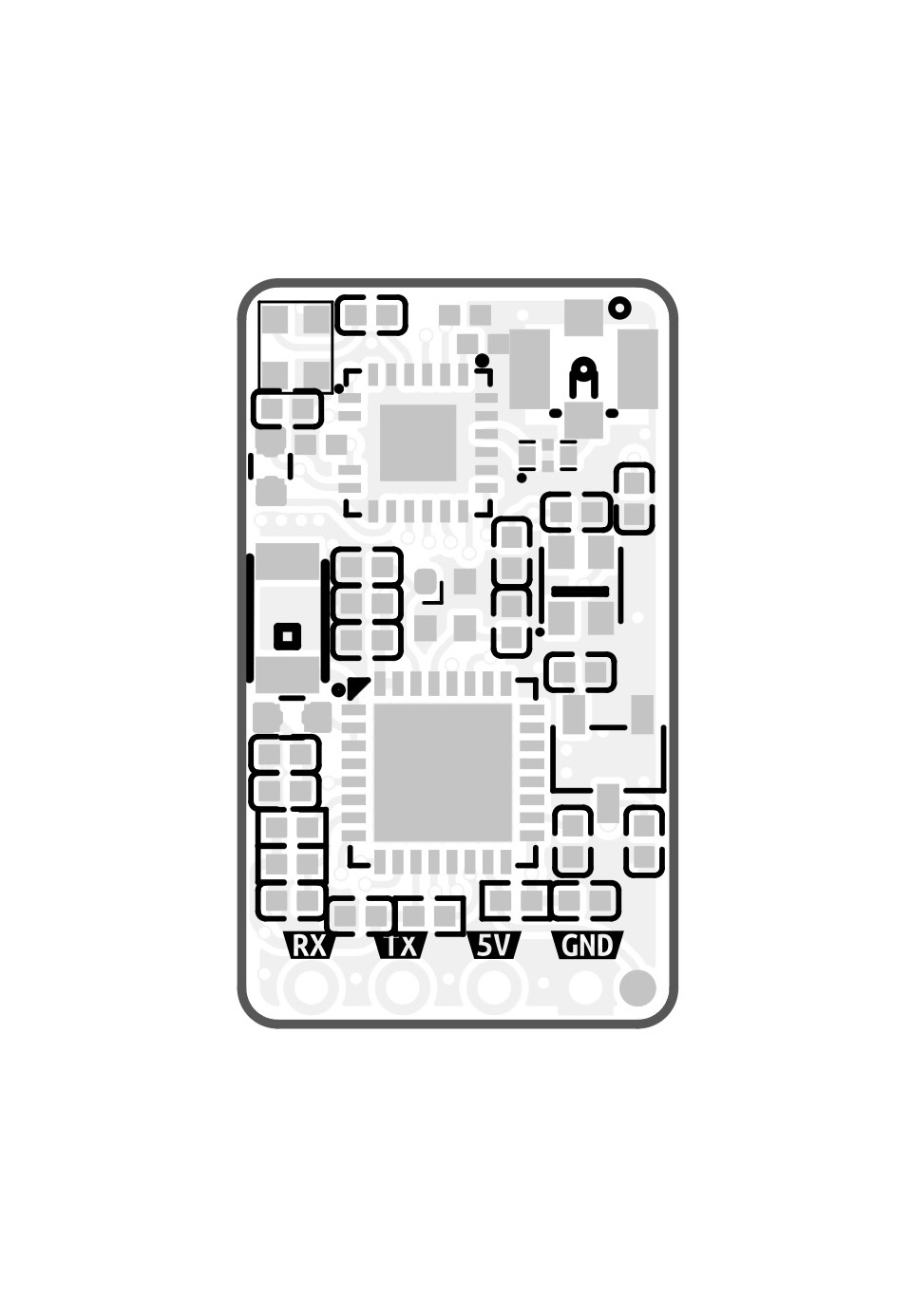

# Pinout

<figure><img src="/files/3xomdkswxCaQWYNYf2P0" alt="" width="563"><figcaption></figcaption></figure>

## Pinout

| Pin Label | Function                                             |
| --------- | ---------------------------------------------------- |
| RX        | Receiver UART RX (Control from FC)                   |
| TX        | Receiver UART TX (Telemetry to FC)                   |
| VCC       | Power Input (5V)                                     |
| GND       | Ground                                               |
| BOOT      | Firmware update mode (pull low on boot) *(Optional)* |
