Features

  • ExpressLRS 3.0 Compatible

    Fully compliant with ELRS 3.0 protocol for high-speed, low-latency, and long-range RC link.

  • External Antenna Support

    IPEX/U.FL connector allows use of high-gain or directional antennas for extended range.

  • Onboard RGB LED

    Built-in multicolor status LED for visual feedback on binding, signal strength, and link status.

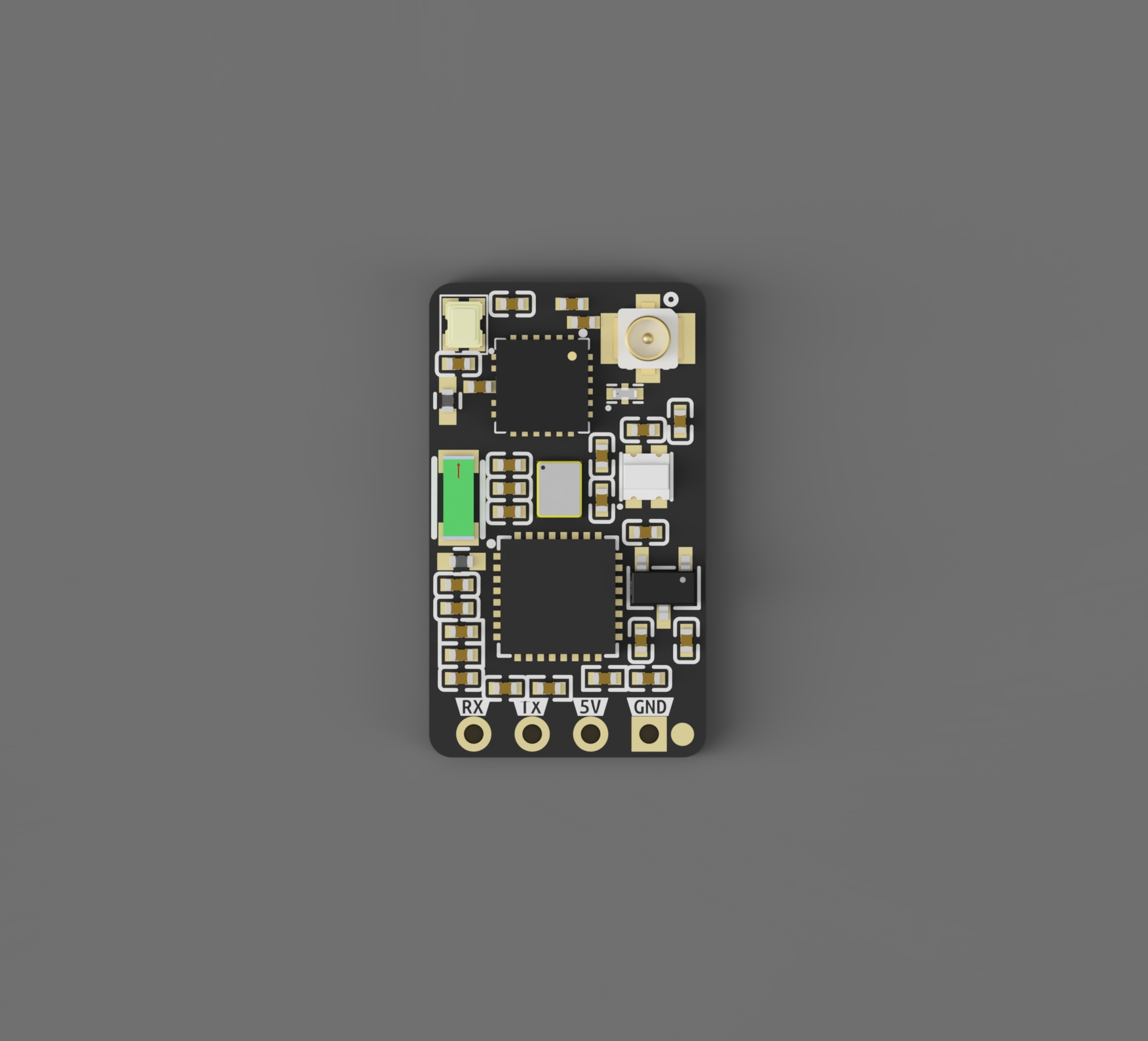

  • Ultra-Compact Design

    Just 12mm x 20mm in size, perfect for space-constrained builds.

  • Lightweight

    Weighs under 4 grams including the antenna connector, minimizing impact on flight characteristics.

  • High Update Rate

    Supports up to 500Hz packet rates (radio-dependent), delivering ultra-smooth control.

  • Secure and Resilient Link

    Frequency hopping spread spectrum (FHSS) ensures robust performance even in noisy RF environments.

Note: Tested more than 8 km LOS*
